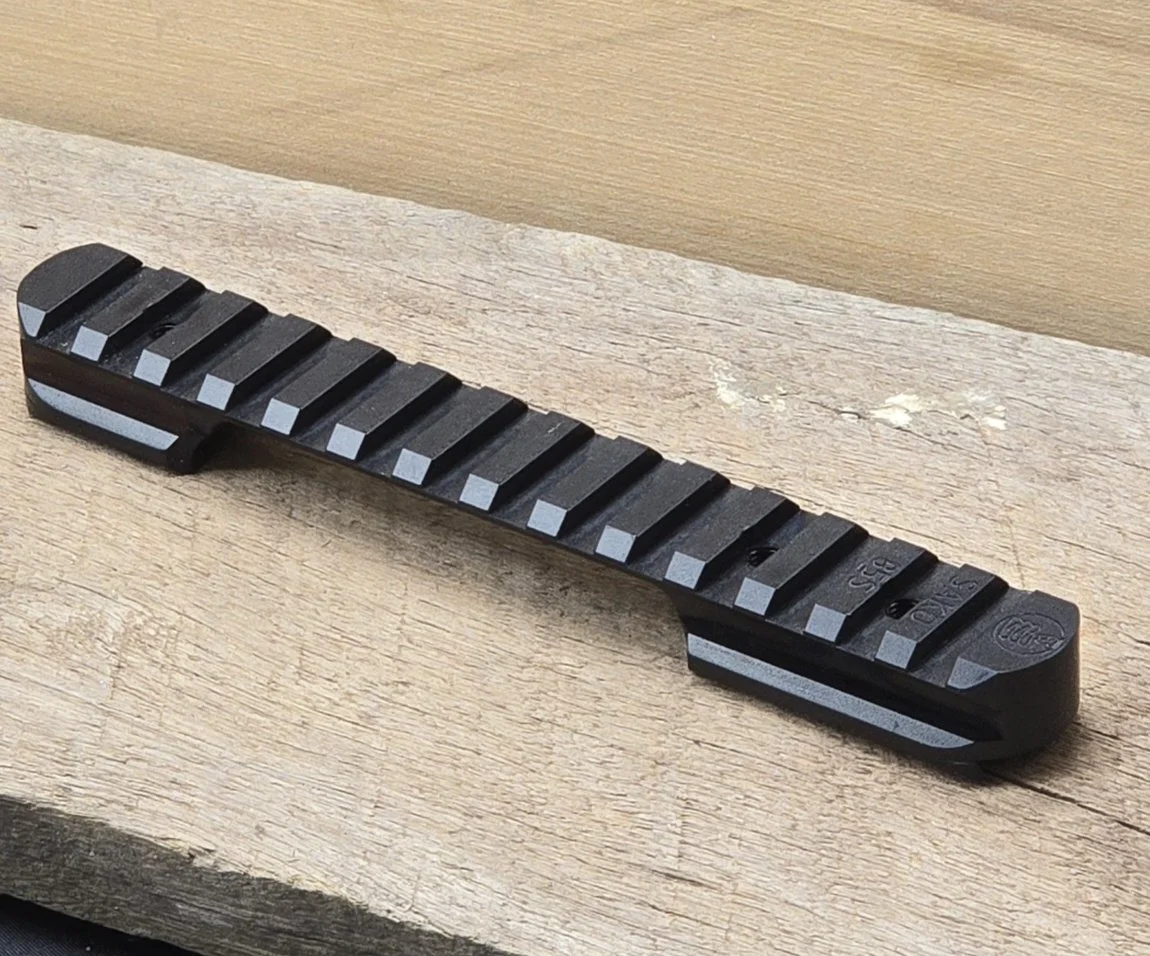

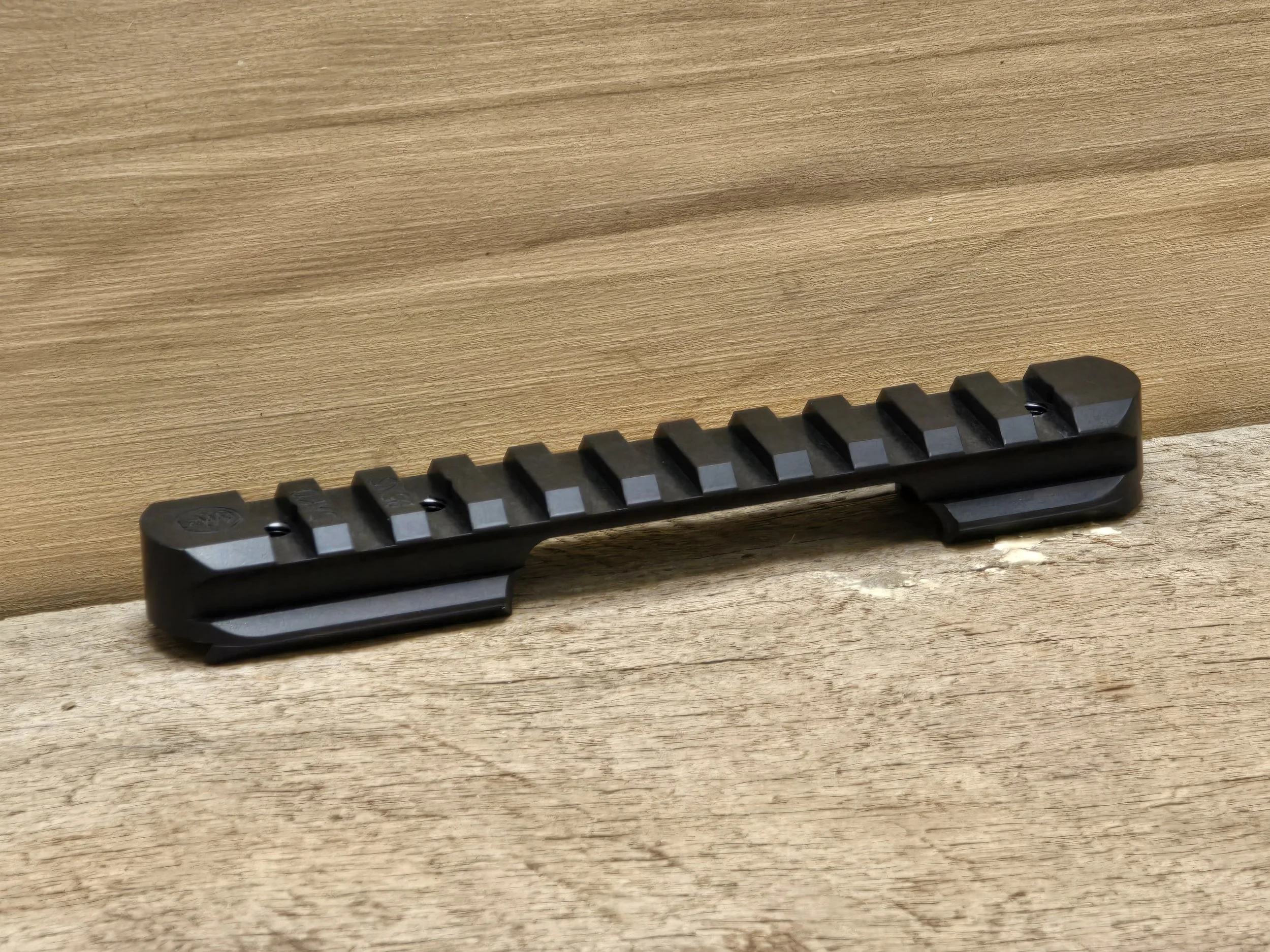

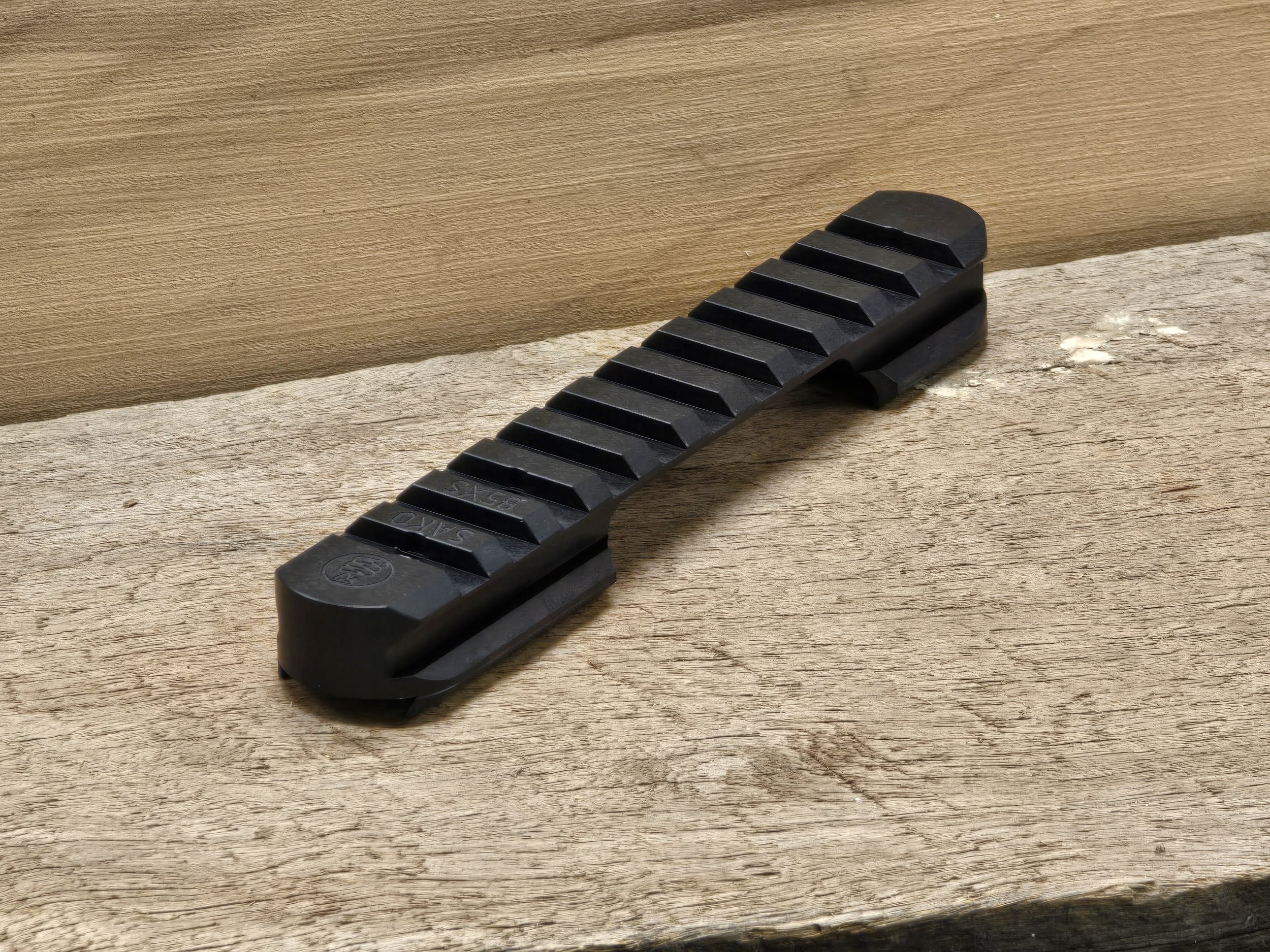

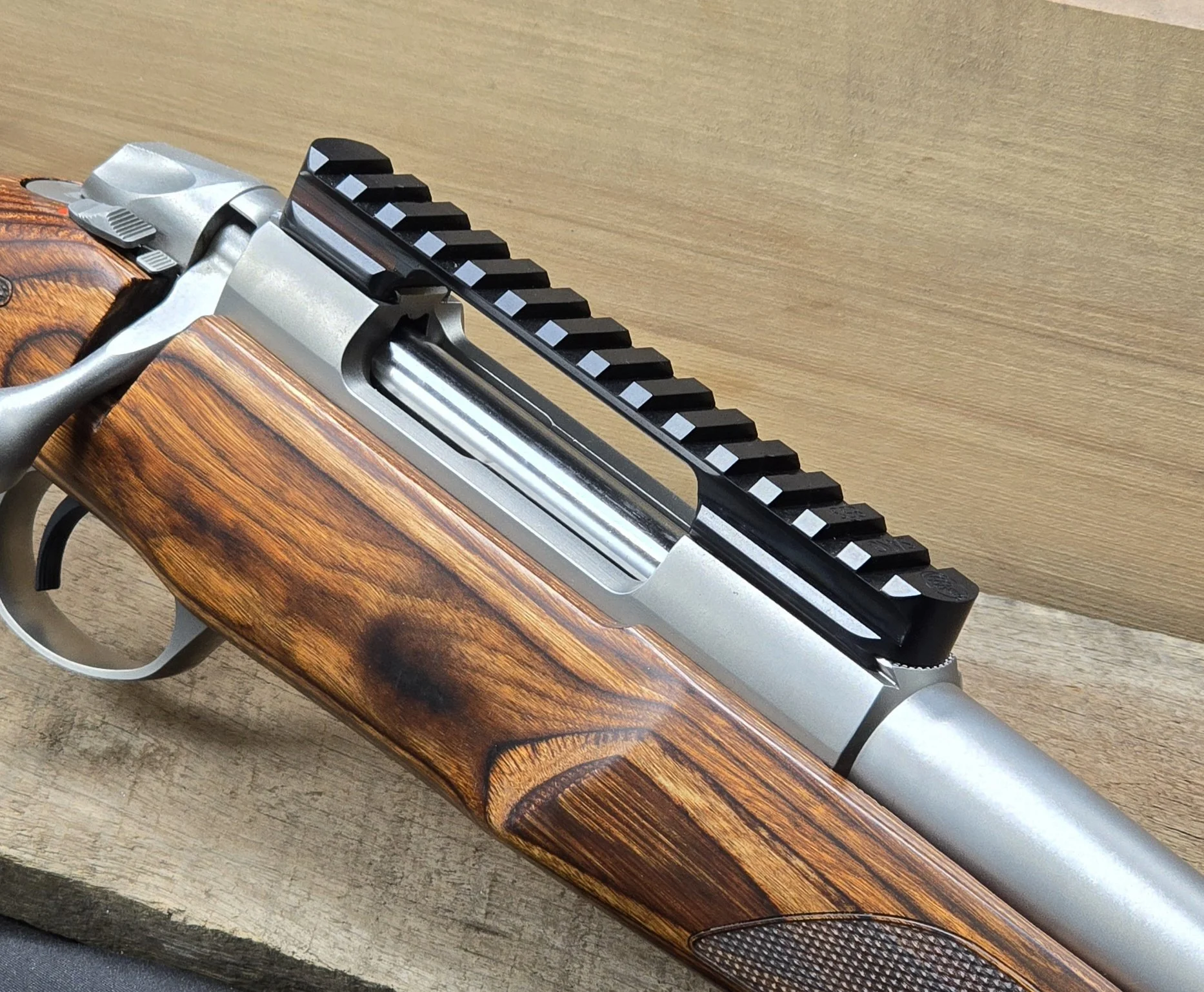

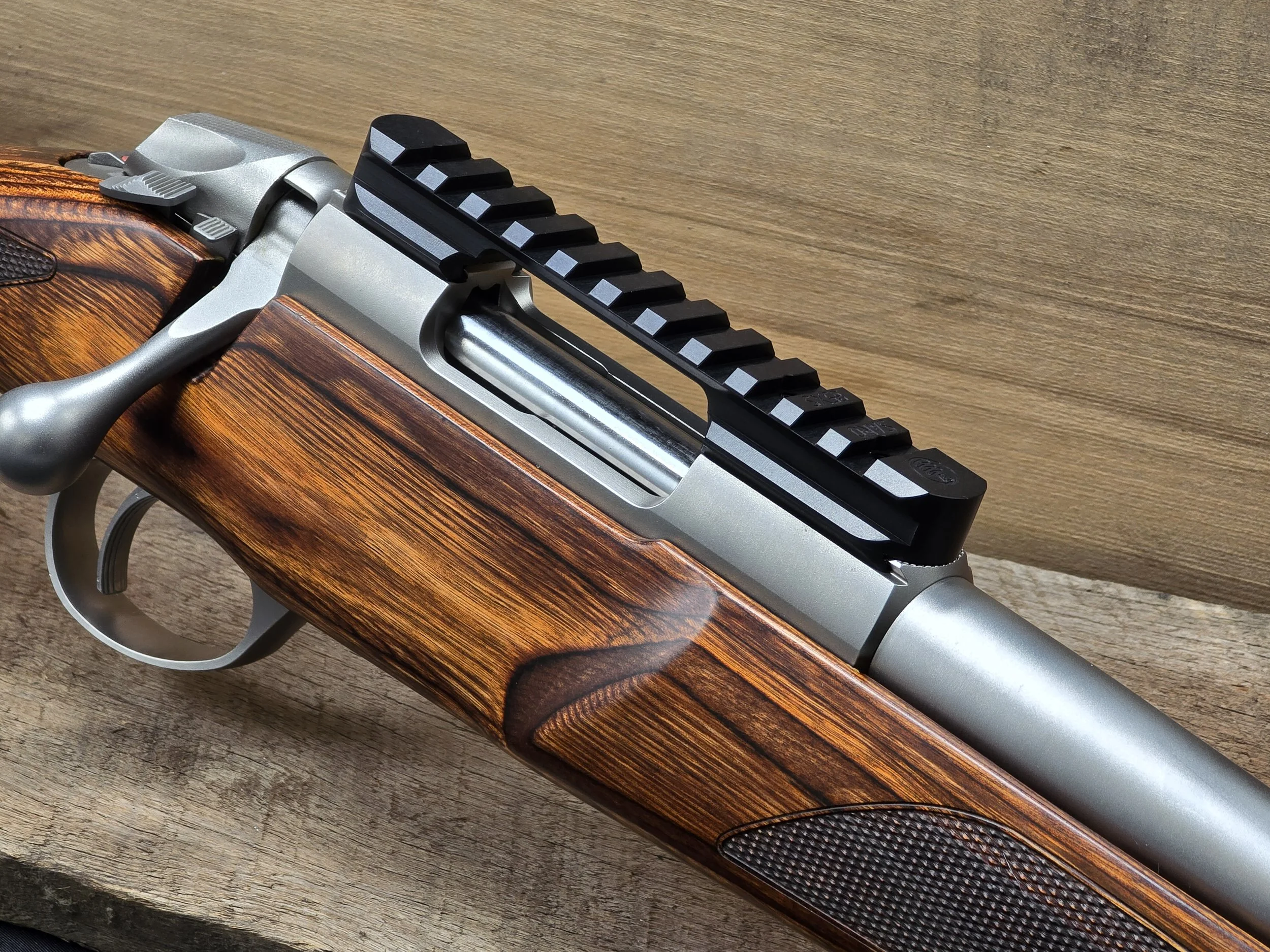

A secure, low-profile optics mount for your Sako 85 rifle.

We’ve redesigned our popular Sako 85 picatinny rail to be even better.

When we first started making these at our old Ipswich shop on our 90s era HAAS we had serious limitations on how complex we could make these, form took a backseat to function. Now we’ve got newer, more capable machines and more powerful CAD/CAM software we can bring you the picatinny rail your Sako deserves. We bring you a lighter, more aesthetically matched rail with larger ejection port clearance as well as being ambidextextous - so, left handers, we got you covered.

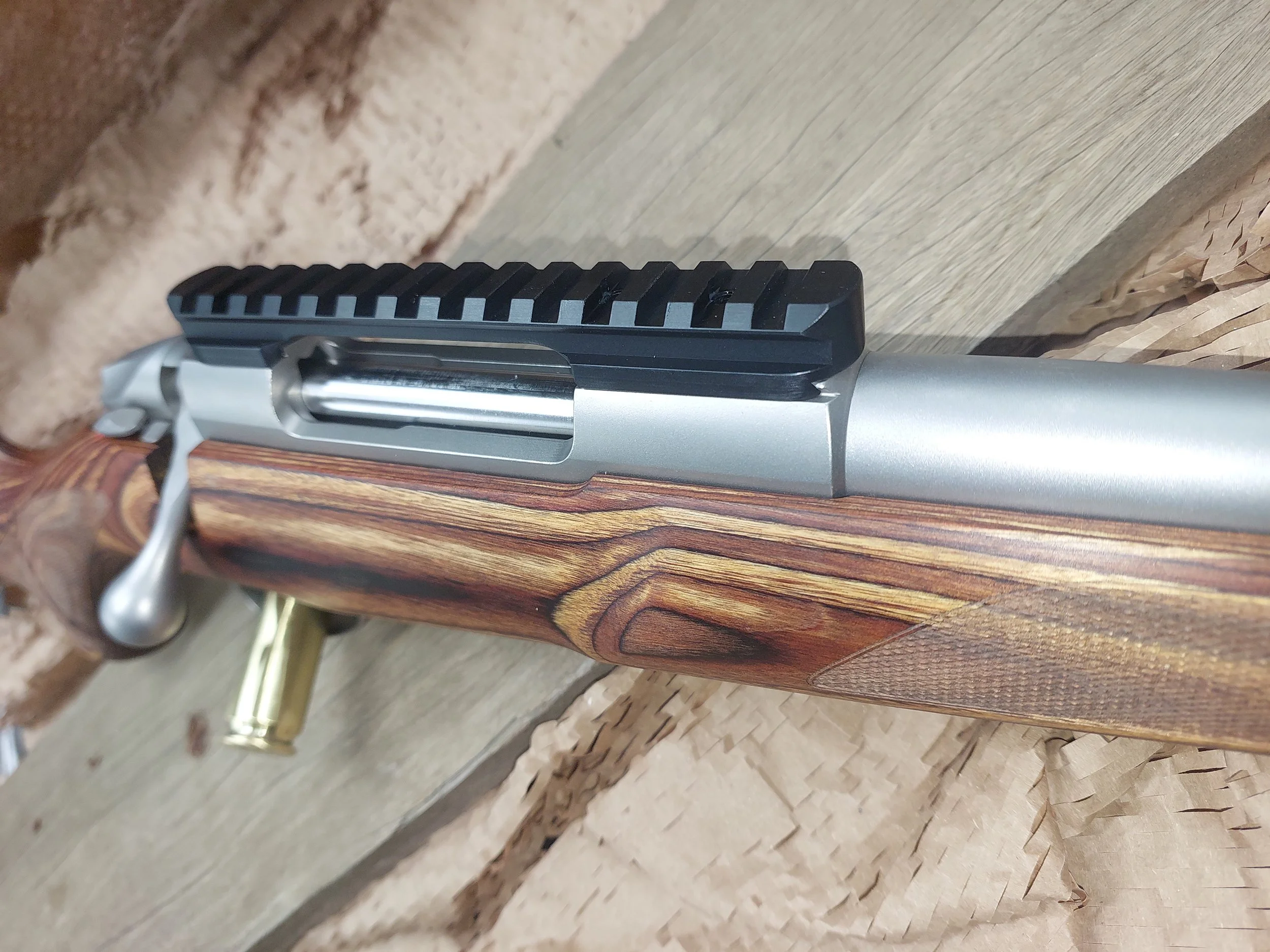

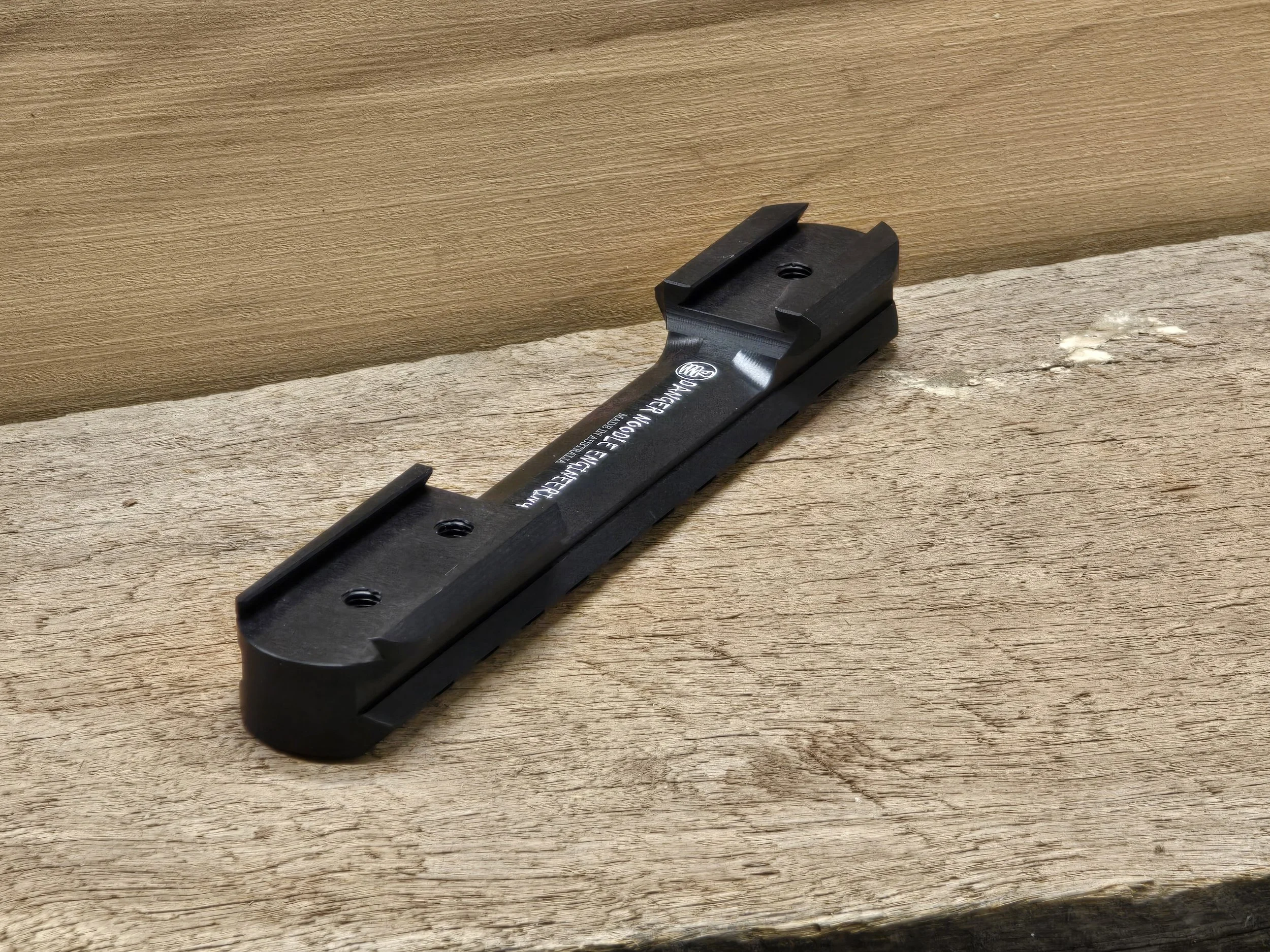

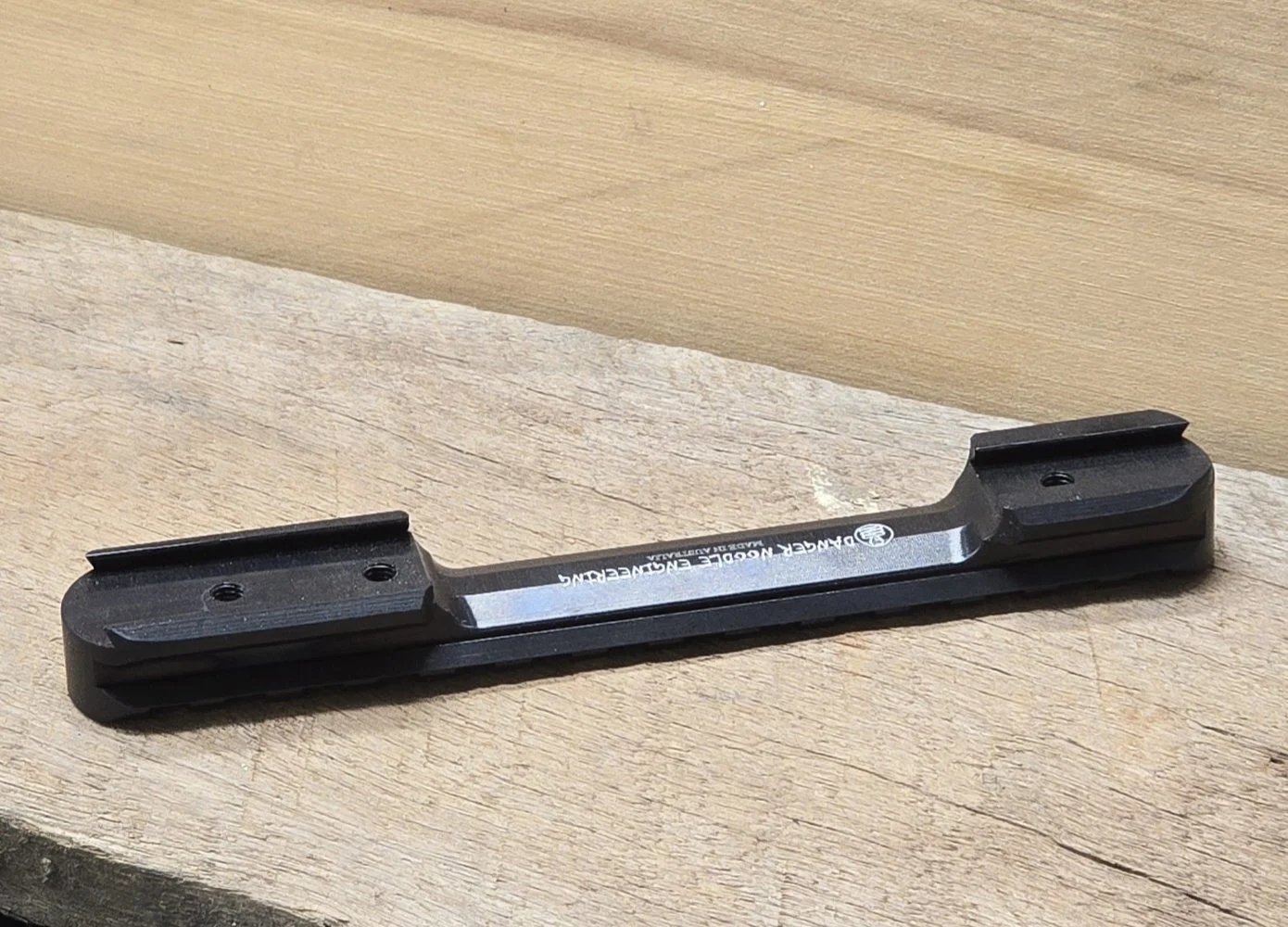

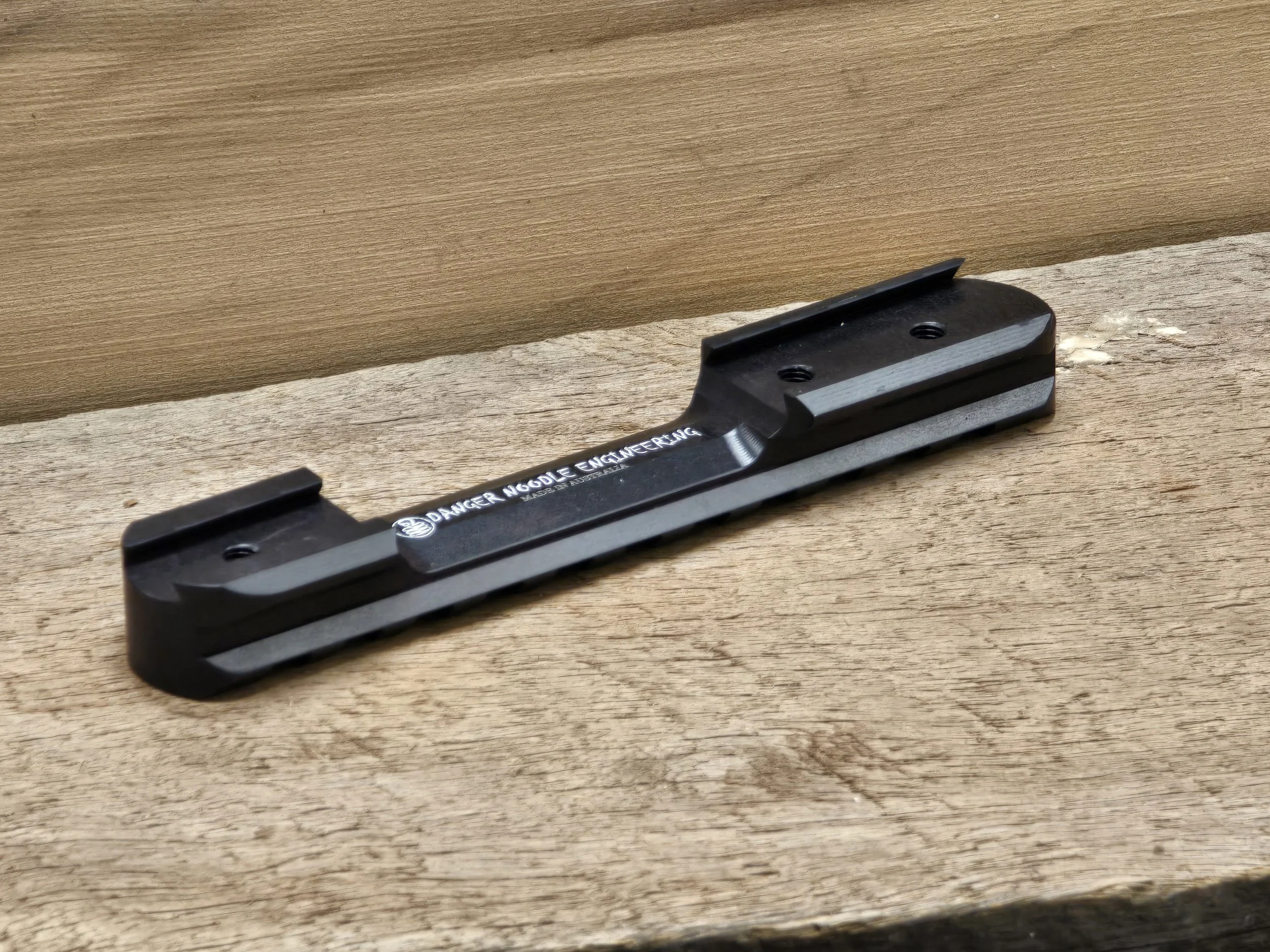

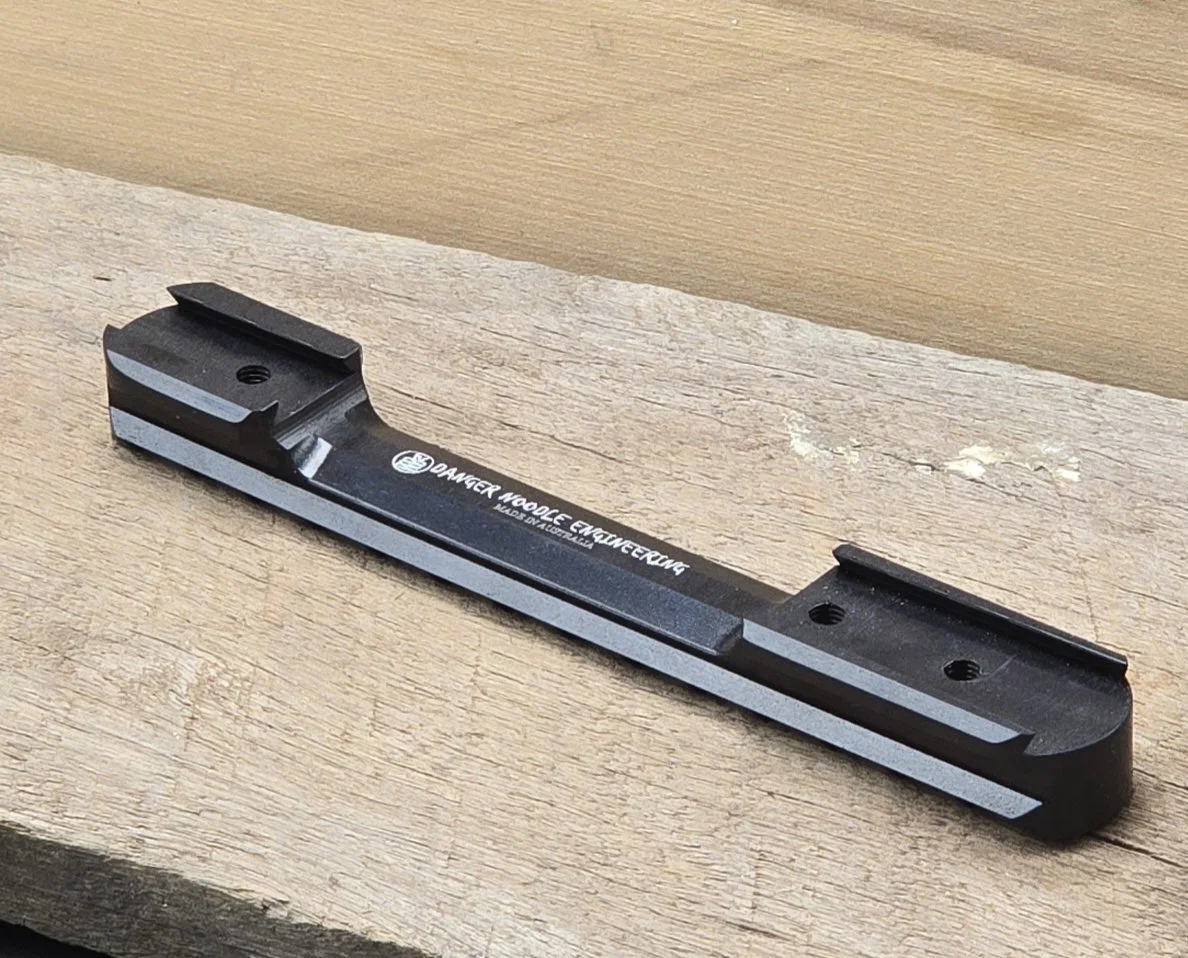

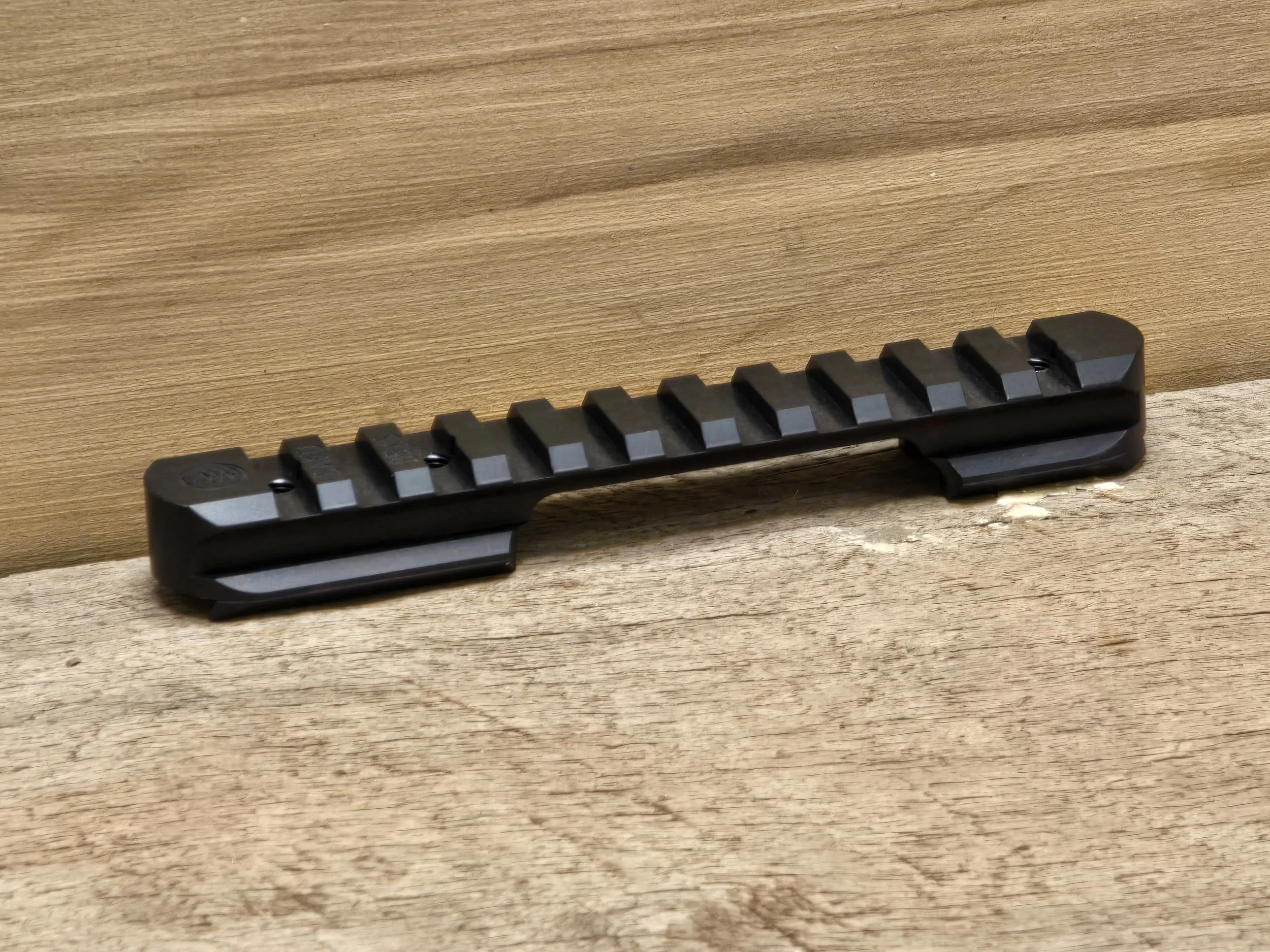

This one-piece Picatinny rail is designed for the popular Sako 85 series, providing a rock-solid optics platform while maintaining a low-profile fit. The tapered dovetail design ensures a secure press-fit installation with a nylon mallet, while non-marring brass set screws prevent marking your rifle’s action. We strongly recommend applying a small amount of Anti-Seize (like Permetx #80078) or heavy grease on the rails dovetail to ease installation

Key features

• Precision fit for Sako 85 rifles

• Low-profile design for a sleek, minimal height increase

• Non-marring brass set screws prevent damage to your rifle

• Tapered dovetail mount for a secure, press-fit installation

Available sizes

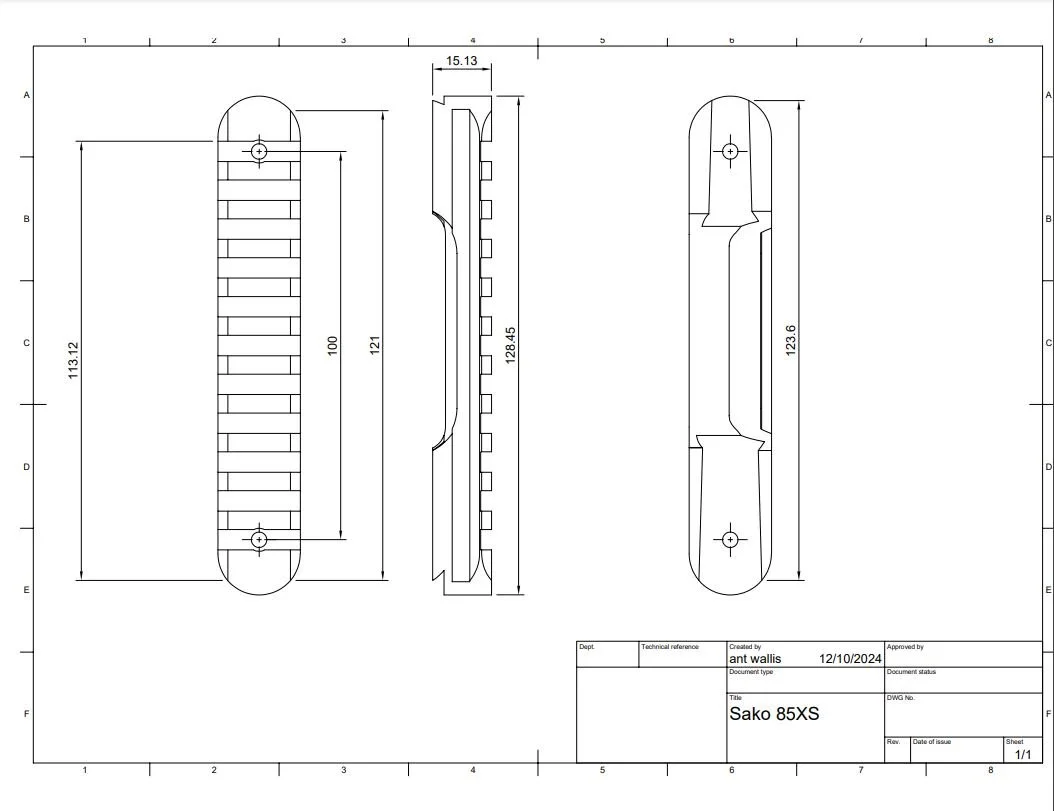

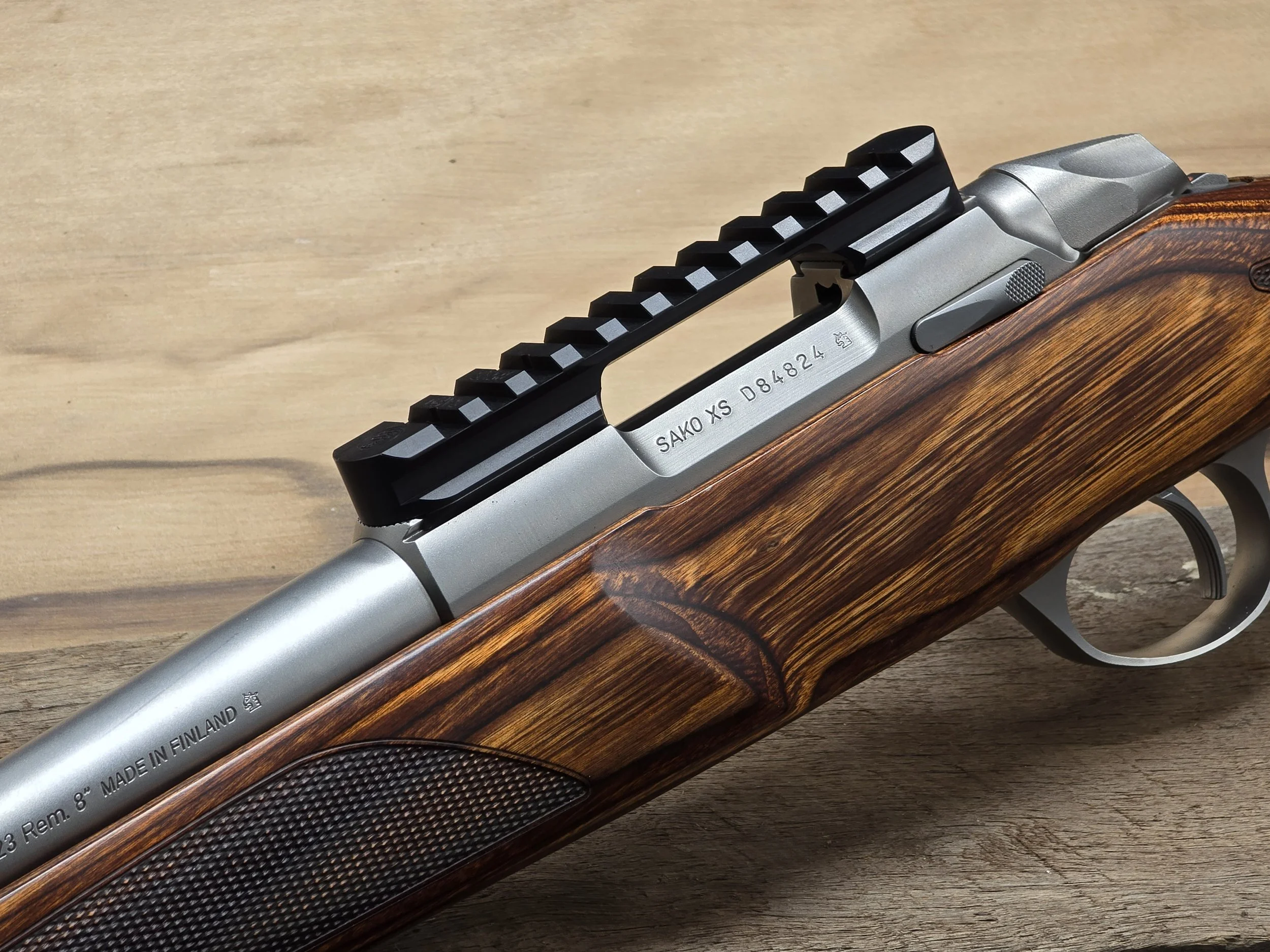

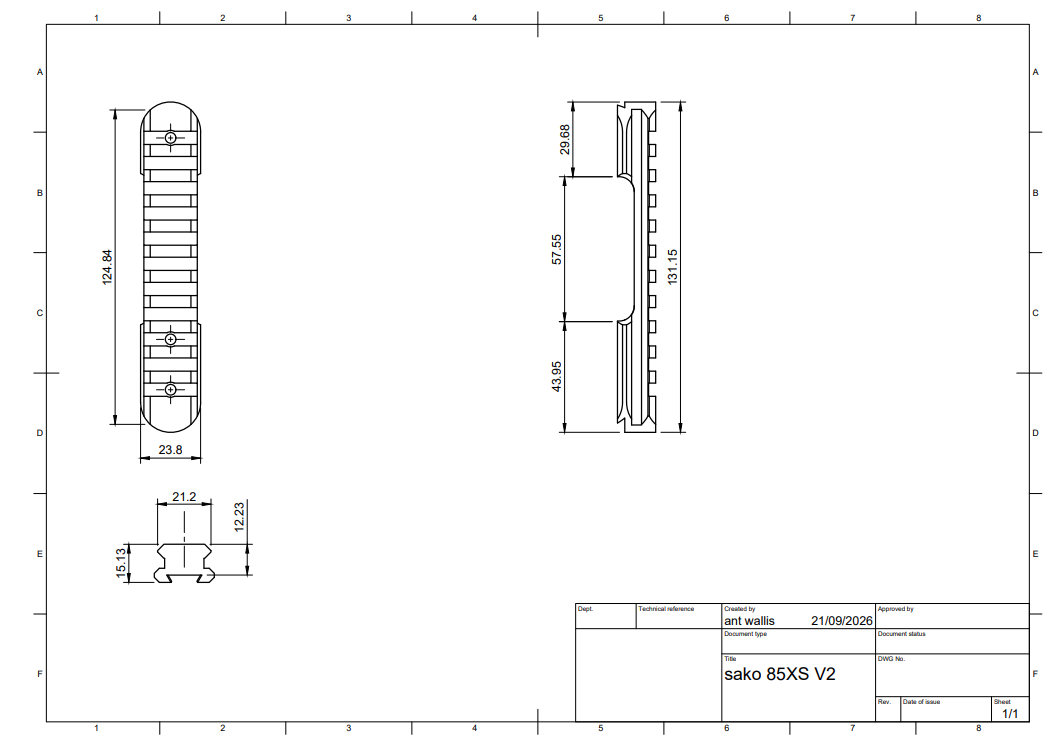

• XS: 131.2mm long, 23.8mm wide, 15.13mm tall, with only 12.23mm above the action when mounted (58 grams)

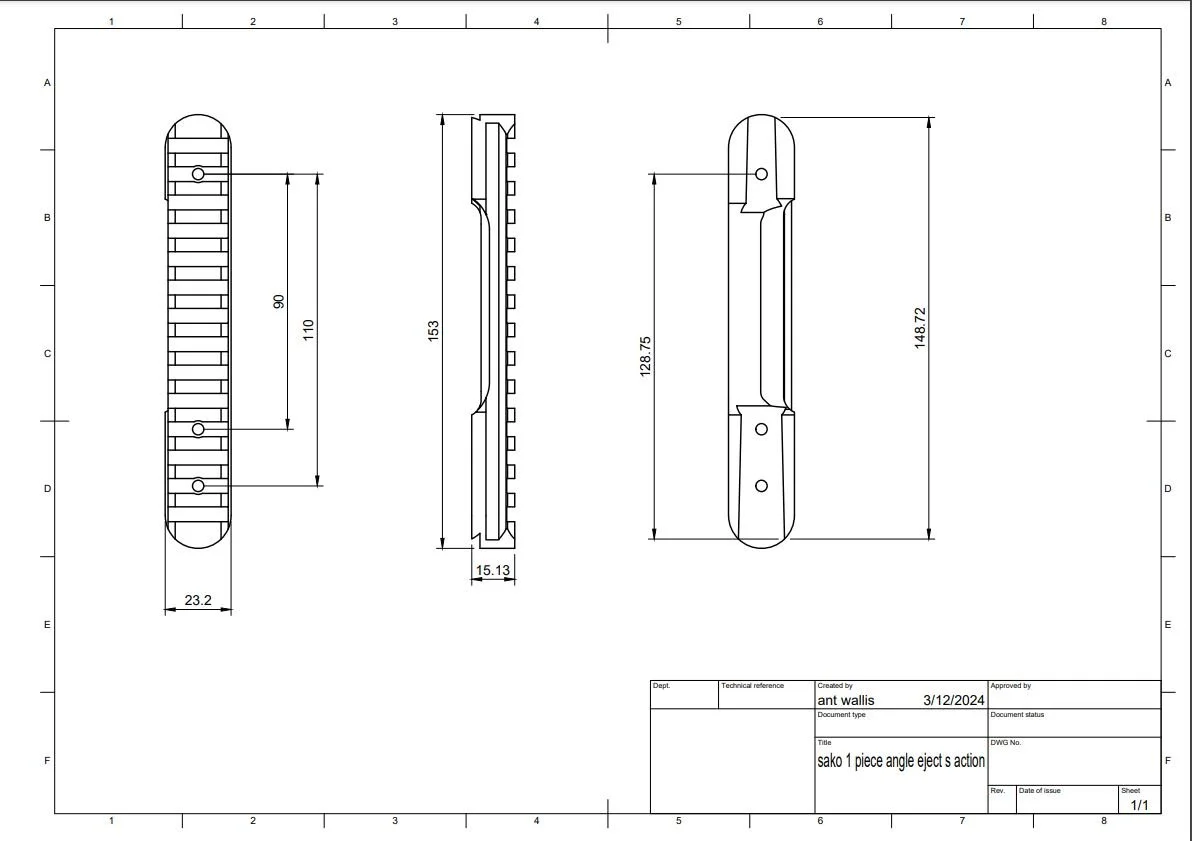

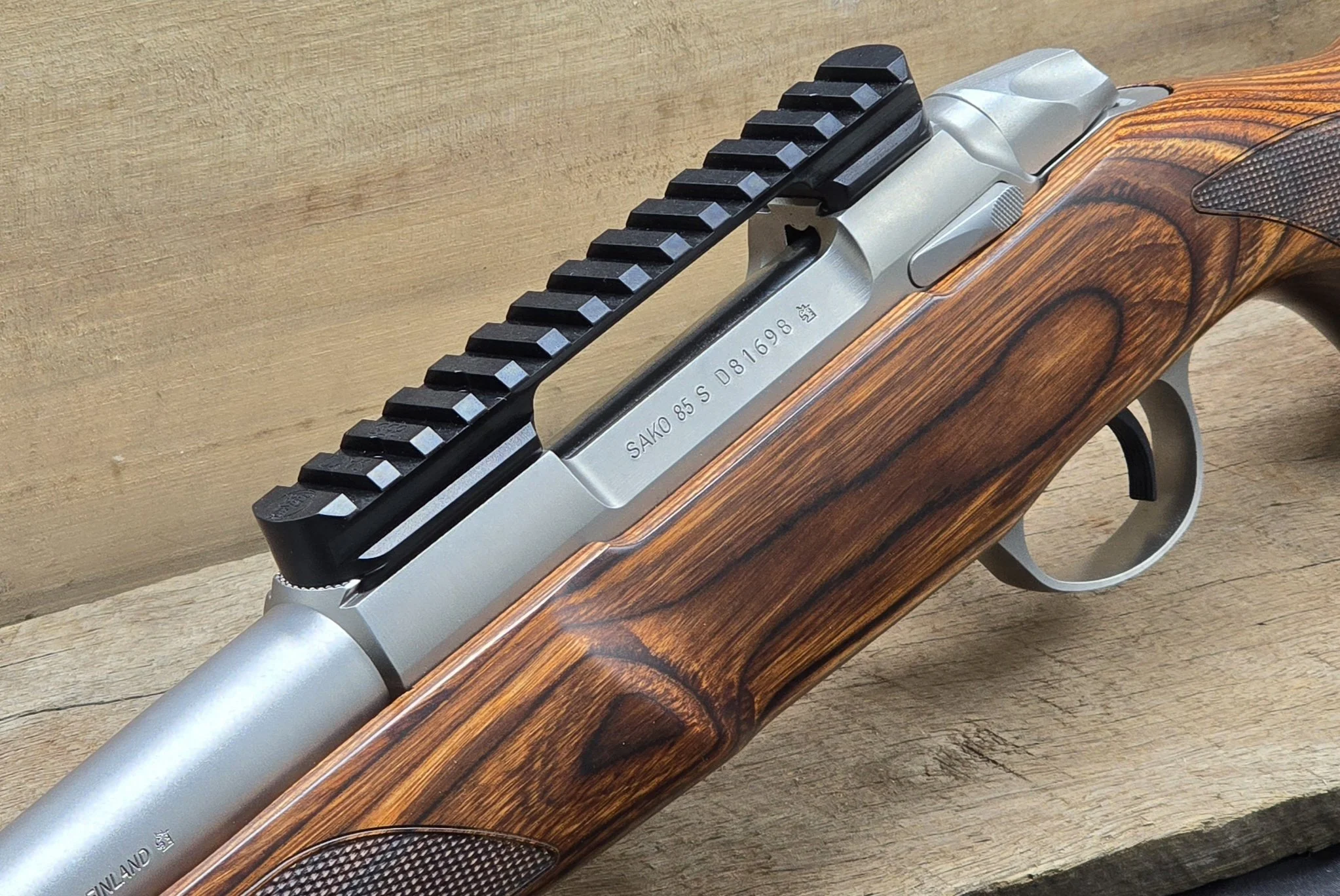

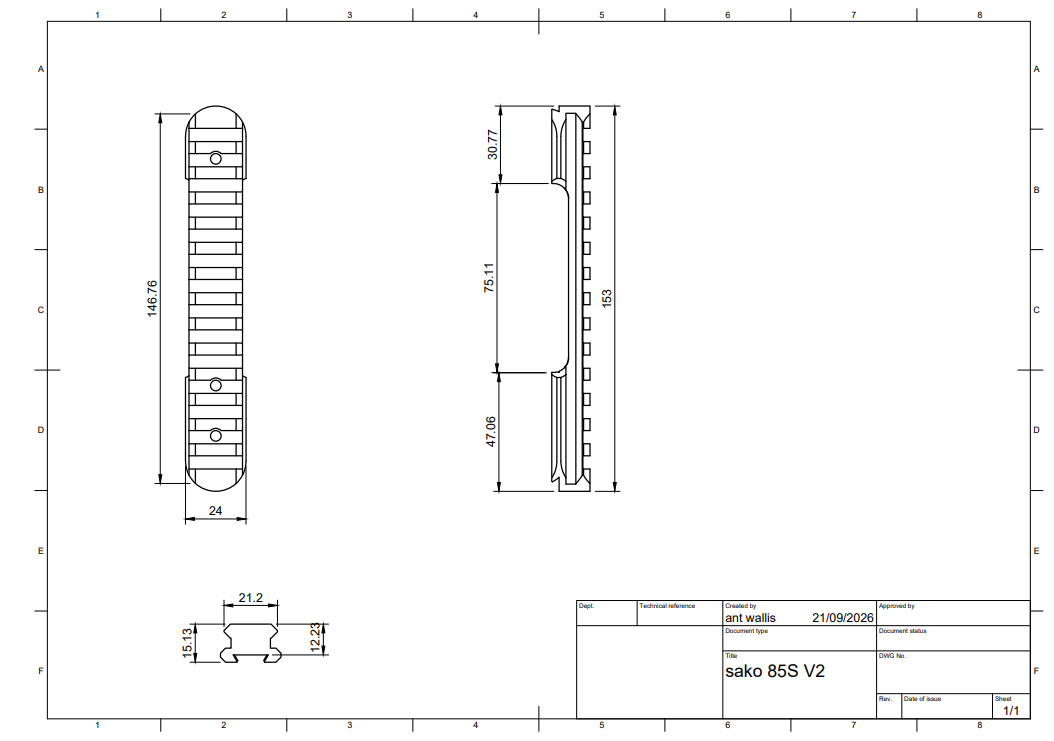

• S: 153mm long, 24.1mm wide, 15.13mm tall, with only 12.23mm above the action when mounted (66 grams)

• M: We are currently looking for an M sized action to measure and fit, If you want picatinny rail in this size, please contact us to arrange a fitting.

Built to last

• Machined from 6061 aluminium for strength and durability

• Precision-engineered for a perfect fit

• Finished in anodised black

  *This rail is specifically designed to fit the Sako 85 series, while the dovetail is standard across the various earlier models, some hand fitting may be required to fit older models.

Proudly Australian made.

SAKO 85 Action Sizes:

Size XS

Size S

Size SM

Size M

Size L

Size XL

Rifles, which have the same mounting surface as Sako 85 XS:

Sako 75 I

Sako MA 05 XS

Sako L461 Vixen

Sako S491

Rifles, which have the same mounting surface as Sako 85 S:

Sako 75 III

Sako MA 05 S

Sako L579 Forester

Sako M591

Sako VL63 Finnwolf

Rifles, which have the same mounting surface as Sako 85 SM:

Sako 75 SM

Sako MA 05 SM

Rifles, which have the same mounting surface as Sako 85 M:

Sako 75 IV

Sako MA 05 M

Sako L691

Sako TRG-S M995

Rifles, which have the same mounting surface as Sako 85 L:

Sako MA 05 L

Sako L61R Finnbear

Rifles, which have the same mounting surface as Sako 85 XL:

Sako 75 V

Sako TRG-S M995 Magnum
